全國服務熱線MHBHT筒式荷重傳感器采用筒柱式結構。具有量程范圍大、密封性好、自動調心、抗偏載能力強、性能穩定，安裝方便。適用于電子汽車衡、軌道衡、平臺秤、料斗秤、罐秤等工業自動化測量控制系統。
額定載荷 Rated load | 10t～300t |
靈敏度 Output sensitivity | 1.5±0.05 mV/V |
非線性 Non-linearity | ±0.3～±0.5 %F?S |
滯后誤差 Lag error | ±0.3 %F?S |
重復性誤差 Repeatability | ±0.2 %F?S |
蠕變 Creep | ±0.15 %F?S |
零點溫度系數 Zero temperature coefficient | ±0.1 %F?S/10℃ |
靈敏度溫度系數 Sensitivity temperature coefficient | ±0.1 %F?S/10℃ |
輸入電阻 Input resistance | 750±30Ω |
輸出電阻 Input resistance | 700±5Ω |

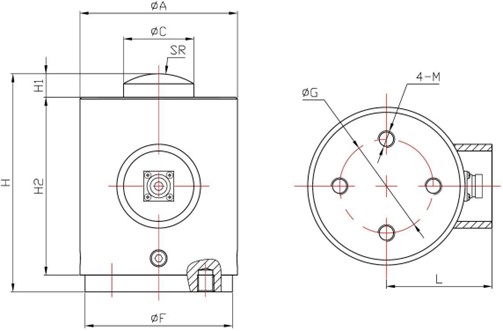

量程 | ?A | H | H1 | H2 | ?C | ?F | ?G | SR | 4-M | L |
10t～30t | ?94 | 130 | 14 | 106 | ?42 | ?88 | ?56 | 100 | M10x10 | 67 |
50t～100t | ?129 | 178 | 18 | 148 | ?76 | ?124 | ?82 | 200 | M12x12 | 85 |
150t～200t | ?149 | 220 | 24 | 182 | ?100 | ?144 | ?98 | 300 | M14x14 | 95 |
250t～300t | ?184 | 260 | 28 | 216 | ?120 | ?178 | ?130 | 400 | M16x16 | 117 |
